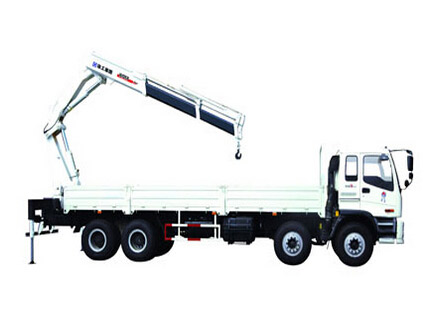

Detailed configuration
Chassis DFL1250A9 ; CA1240PK2L7T4EA81;  . Customers can also choose other chassis.

Advantages
1 year warranty
Various choices of chassis for customers
High technology hydraulic system




Model	SQ10ZK3Q	Unit
Max Lifting Moment	20	t.m
Max Lifting Capacity	10000	kg
Recommend Power Needed At Recommend Oil Flow	28	kw
Max Oil Flow of Hydraulic System	40	L/min
Rated Pressure Of Hydraulic System	28	MPa
Oil Tank Capacity	160	L
Rotation Angle	(360°)All Rotation	。
Crane Weight	3477	kg
Installation Space	1150	mm
Choice of Chassis	DFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX;



SQ10ZK3Q Lifting capability diagram
Working radius (m)	2	4.17	5.99	7.87	9.75
Lifting capacity (kg)	10000	4600	3050	2280	1700
