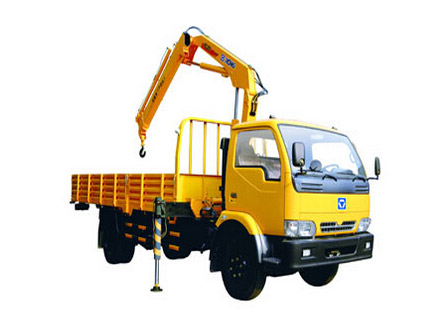

XCMG Truck mounted crane
SQ3.2Zk1 /SQ3.2Zk2
We adopt advanced design and device to make the truck crane safer and easier for operation. The biggest advantage is easier to maintain and has reliable quality...
Contact us
Call us+86 791 86219010
- Product Details
Detailed configuration
Chassis EQ1092FJ1, NKR77PLLWCJAY. Customers can also choose other chassis.
Advantages
Good enjoyment for operators
High quality
Long life service
Chassis EQ1092FJ1, NKR77PLLWCJAY. Customers can also choose other chassis.
Advantages
Good enjoyment for operators
High quality
Long life service
| Model | SQ3.2ZK1 | SQ3.2ZK2 | Unit |
| Max Lifting Moment | 6.72 | 6.72 | t.m |
| Max Lifting Capacity | 3200 | 3200 | kg |
| Recommend Power Needed At Recommend Oil Flow | 14 | 14 | kw |
| Max Oil Flow of Hydraulic System | 25 | 25 | L/min |
| Rated Pressure Of Hydraulic System | 22 | 22 | MPa |
| Oil Tank Capacity | 60 | 60 | L |
| Rotation Angle | 370 | 370 | |
| Crane Weight | 1100 | 1200 | kg |
| Installation Space | 850 | 850 | mm |
| Choice of Chassis | EQ1092FJ1；EQ1092FJ；NKR77PLLWCJAY ；DFL1120B D530；EQ1081GJ12D5；HFC1083K103R1D；EQ1092F3GJ1；EQ5121GFJ； | ||
| SQ3.2ZK1 Lifting capability diagram | |||
| Working radius (m) | 2.1 | 4.15 | 5.8 |
| Lifting capacity (kg) | 3200 | 1400 | 1000 |
| SQ3.2ZK2 Lifting capability diagram | ||||
| Working radius (m) | 2.1 | 4.15 | 5.8 | 7.3 |
| Lifting capacity (kg) | 3200 | 1300 | 950 | 650 |
-
