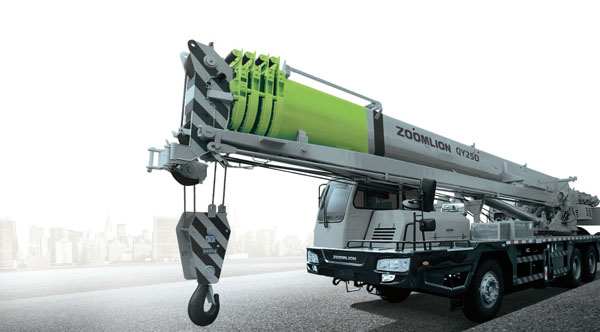

ZOOMLION Truck crane  QY25D531R

Our Service:

* We are 7 years supplier, have good price of ZOOMLION Truck crane  QY25D531R for sale.

* We supply one year guarantee for all machines.

* We also supply Shantui Bulldozer Spare Parts with good price and quick response.



For more details, specification and catalogues about Shantui Bulldozer,

please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• Jib length 8.0m,Main boom length(10.6 – 40.0m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.

 ZOOMLION Truck crane  QY25D531R

Item		Unit	Value	Remarks
Working performance	Max. rated lifting capacity	kg	25000
	Max. load moment of basic boom	kN.m	1029
	Max. load moment of main boom(fully extended)	kN.m	564
	Max. load moment of basic boom	m	11.1
	Max. lifting height of main boom	m	40.5	These parameters do not include deflection of main boom and jib
	Max. lifting height of jib	m	48.5
Working speeds	Max. hoist rope speed(Main winch)	m/min	120	At the 4th  layer
	Max. hoist rope speed(Auxiliary winch)	m/min	100	At the 2nd   layer
	Boom demrricking up time	s	40
	Boom demrricking up time	s	80
	Slewing  speed	r/min	0 -2.2
Driving parameters	Max. driving  speed	km/h	78
	Max. Grade ability	%	37
	Turning diameter	m	≤22
	Min.  ground clearance	mm	235
	Oil consumption per hundred kilometers	L	35
Mass	Dead weight in driving condition	kg	32400
	Complete vehicle kerb mass	kg	32270
	Front axle load	kg	6500
	Rear axle load	kg	25900
Dimensions	Overall dimensions(L×W×H)	mm	13000×2550×3500
	Outrigger spread(L)	m	5.36
	Outrigger spread(W)	m	Fully extended:6.1, Intermediately extended:4.2
	Tail slewing radius	mm	3385
	Main boom length	m	10.6 - 40.0
	Boom angle	°	-2 - 80
	jib length	m	8.0
	Offset	°	5、17、30
