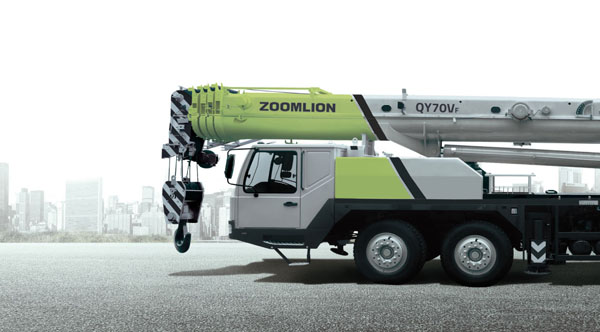

ZOOMLION Truck crane  QY70V532
Our Service:
* We are 7 years supplier, have good price of ZOOMLION Truck crane  QY70V532 for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com
• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 44 m main boom , two section jibs (9.5m 、16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.

ZOOMLION Truck crane  QY70V532
Item Unit Value Remarks
Working performance Max. rated lifting capacity kg 70000
Max. load moment of basic boom kN.m 2352
Max. load moment of main boom(fully extended) kN.m 1098
Max. load moment of basic boom m 12.2
Max. lifting height of main boom m 44.2 These parameters do not include deflection of main boom and jib
Max. lifting height of jib m 60.2
Working speeds     Max. hoist rope speed(Main winch) m/min ≥135 Drum 4th    layer
Max. hoist rope speed(Auxiliary winch) m/min ≥110 Drum 2nd    layer
Boom demrricking up time s 57
Boom demrricking up time s 107
Slewing  speed r/min 1.8
Driving
parameters		 Max. driving  speed km/h 75
Max. gradeability % 37
Min. Turning diameter m 24
Min.  ground clearance mm 280
Oil consumption per hundred kilometers L 46
Mass Deadweight in driving condition kg 45000
Complete vehicle kerb mass kg 44870
Front axle load kg 19000
Rear axle load kg 26000
Dimensions Overall dimensions(L×W×H) mm 14100×2750×3750
Longitudinal distance between outriggers m 6.00
Transversal distance between outriggers m Fully extended:7.6,
Half- extended:5.04
Tail slewing radius mm 4020
Boom length m 11.4 - 43.0
Boom angle ° -2 - 80
Jib length m 9.5,16.0
Offset ° 0、30
