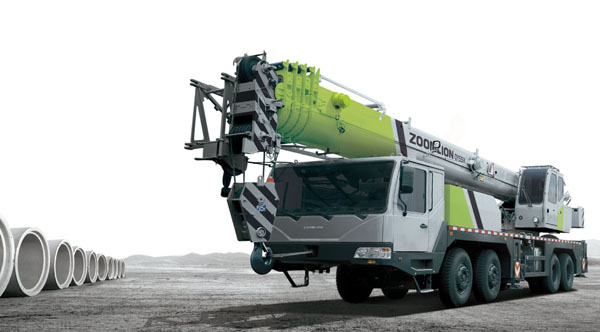

ZOOMLION Truck crane QY55V532.2
Our Service:
Our Service:
* We are 7 years supplier, have good price of ZOOMLION Truck crane QY55V532.2 for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.
For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com
• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 43 m main boom , two section jibs (9.5m 、16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.
ZOOMLION Truck crane QY55V532.2
ZOOMLION Truck crane QY55V532.2
• Continuously overall promotion makes our lifting capacity of crane be improved once and once again.
• 43 m main boom , two section jibs (9.5m 、16m).
• Optimized central slewing position increases the lifting capacity of the crane over rear.
• Large outrigger span improves the working stability of the crane greatly,
• Adopt internationally advanced structure analysis and calculation methods to develop the lifting capacity of crane deeply.
• Leading boom manufacturing process in trade.
ZOOMLION Truck crane QY55V532.2
| Item | Unit | Value | Remarks | |
| Working performance | Max. rated lifting capacity | kg | 55000 | |
| Max. load moment of basic boom | kN.m | 2009 | ||
| Max. load moment of main boom(fully extended) | kN.m | 1050 | ||
| Max. load moment of basic boom | m | 12.6 | ||
| Max. lifting height of main boom | m | 43.6 | These parameters do not include deflection of main boom and jib | |
| Max. lifting height of jib | m | 59.5 | ||
| Working speeds | Max. hoist rope speed(Main winch) | m/min | 120 | |
| Max. hoist rope speed(Auxiliary winch) | m/min | 120 | ||
| Boom demrricking up time | s | 50 | ||
| Boom demrricking up time | s | 95 | ||
| Slewing speed | r/min | 0-2.2 | ||
| Driving | Max. driving speed | km/h | 76 | |
| Max. gradeability | % | 40 | ||
| Turning diameter | m | ≤24 | ||
| Min. ground clearance | mm | 260 | ||
| Oil consumption per hundred kilometers | L | 43 | ||
| Mass | Deadweight in driving condition | kg | 42000 | |
| Complete vehicle kerb mass | kg | 41870 | ||
| Front axle load | kg | 16000 | ||
| Rear axle load | kg | 26000 | ||
| Dimension | Overall dimensions(L×W×H) | mm | 13700×2800×3650 | |
| Longitudinal distance between outriggers | m | 5.92 | ||
| Transversal distance between outriggers | m |
Fully extended:7.1, Intermediately extended:4.8 |
||
| Tail slewing radius | mm | 3900 | ||
| Main boom length | m | 11.4 - 43.0 | ||
| Main boom angle | ° | -2 - 80 | ||
| jib length | m | 9.5,16.0 | ||
| Offset | ° | 0、30 | ||
-
