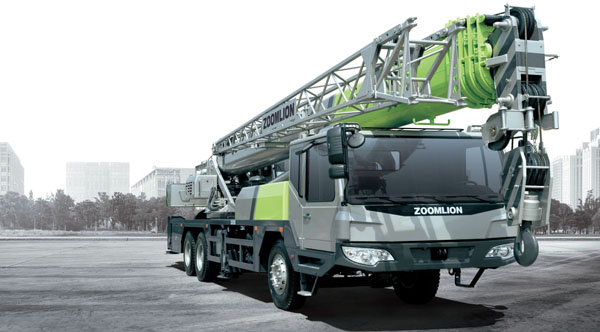

ZOOMLION Truck crane  QY25V531.5

Our Service:
* We are 7 years supplier, have good price of ZOOMLION Truck crane  QY25V531.5  for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

Integrates Zoomlion more than 40 years experience in mobile cranes with adcanced technology.
• Weight optimaized and distortion-resistant design of low-alloy and high-strength steel providing the MAX.
• Lifting height with jib up to 46.5m.
• Higher operation/working speed.
• Profitable return on investment

ZOOMLION Truck crane  QY25V531.5
Item Unit Value Remarks
Working performance Max. rated lifting capacity kg 25000
Max. load moment of basic boom kN.m 950
Max. load moment of main boom(fully extended) kN.m 525
Max. lifting height of main boom m 38.7 These parameters do not include deflection of main boom and jib
Max. lifting height of jib m 46.58
Working speeds     Max. hoist rope speed(Main winch) m/min 135 At the 3rd  layer
Max. hoist rope speed(Auxiliary winch) m/min 100 At the 3rd   layer
Boom derricking up time s 40
Boom derricking up time s 120
Slewing  speed r/min 2.6
Driving
parameters		 Max. driving  speed km/h 72
Max. gradeability % 34
Min. turning diameter m ≤20
Min.  ground clearance mm 235
Limits for exhaust pollutants and smoke   Comply with related standards GB3847-2005  GB17691-2005  National stage III
Oil consumption per hundred kilometers L 38
Mass Deadweight in driving condition kg 29400
Complete vehicle kerb mass kg 29270
Front axle load kg 6370
Rear axle load kg 22900
Dimensions Overall dimensions(L×W×H) mm 12510×2500×3455
Outrigger spread(L) m 5.15
Outrigger spread(W) m 6.1
Main boom length m 10.3-38.5
Boom angle ° -2-80
jib length m 8
Offset ° 0、30
Chassis Model   ZLJ5323JQZ
Type   II Code: ZLJ5323JQZV3
Engine Model kw/r/min WP6.240
Rated power  n.m/r/min 176/2300
Max. output torque   900/1400 - 1600
