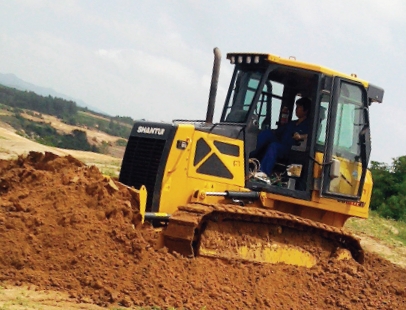

SHANTUI SD08YE Bulldozer

Rated Power: 59kW@2200rpm
Engine Model: Cummins QSB3.3
Operating Weight: 8.02 Tons
·
●The turbocharged, air-to-air intercooled, electronically controlled disel engine emissions meet EPA Tier 3, EU
Stage III A standards; provides excellent power, economy (compared with similar horsepower hydrostatic
bulldozers provides 15% savings), and durability.
●The electronically controlled, dual-circuit hydrostatic drive system automatically adjusts the power output
and the traveling speed to adapt to load changes; both sides of the track are independently driven, so as to
ensure full steering power output, and enabling reverse rotation for both tracks; possesses “multi-grade”
speed characteristics, providing optimum speed in a variety of working conditions.
●The hand-operated electric control system, left joystick controls machine direction and speed, right joystick
operates working device; system enables accurate, simple, and comfortable operation of the machine.
●The heavy, durable, and strong chassis provides for reliable operations in any environment.
●The integrated and intelligent thermal management system ensures optimal temperature control, noise
management, and energy conservation.
●The intelligent service system features automatic fault detection, diagnosis, and remote technical support.
●The cab features roll/drop-proof design, shock absorbing structure, noise reduction technology, air
conditioning, unobstructed vision, and a spacious environment.
●The modular wheel reduction system boasts reliability, long life, and easy maintenance.
●The high-capacity, strong, versatile blade is well-suited for operations such as backfilling, excavation, shaping,
and other heavy duty jobs.

Our Service:
* We are 7 years supplier, have good price of  SHANTUI SD08YE Bulldozer for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

 SHANTUI SD08YE Bulldozer

ITEM	UNIT	SHANTUI SD08YE	SHANTUI SD08YS
L*W*H	mm	Traction frame 4252×2680×2775	Traction frame  4252×3150×2775 Winch 4882×3150×2775
Operating Weight	kg	8020	8440
Track Gauge	mm	1600	1750
Ground Length	mm	2270
Width of Trackshoe	mm	460	610
Blade Width	mm	2680	3150
Blade Height	mm	950	900
Dozing Capacity	m³	1.93	2.04
Maximum Lifting Height of Blade	mm	750
Maximum Digging Depth of Blade	mm	515
Maximum Tilting  Height of Blade	mm	350	411
Cutting Angle	°	52-58
Blade Weight	kg	1211.7
Speed(forward/reverse)	km/h	0-9
Ground Pressure	kPa	38.3	30.5
Minimum Ground Clearance	mm	320
Gradeability	°	30
Model		Cummins QSB3.3
Type		Turbo charged, Water cooled 4-stroke/cycle diesel engine;  direct injection; with crank case shield or equivalent
Rated Speed	rpm	2200
Rated Power	kW	59
Cylinder Qty-Cylinder  Bore X Stroke	mm	4-95×115
Swept Volume	L	3.3
Max.Torque	N.m/rpm	415/1600
Fuel Capacity	L	192
Coolant Capacity	L	18
Net Engine Weight	kg	275
Specific Fuel Consumption	g/kW-h	≤227
Engine Oil Capacity	L	7
Type		Rigid Suspension
Number of Carrier Roller		2/side
Width of Trackshoe	mm	460	610
Pitch	mm	154
Variable Pump		2
Number of Travel Motor and Reducer		2
System Pressure	MPa	40
Brake Pressure	MPa	2.5
