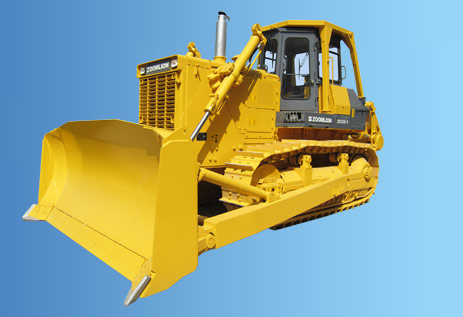

ZOOMLION ZD320-3 bulldozer

   Our Service:
* We are 7 years supplier, have good price of ZOOMLION ZD320-3 bulldozer
 for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

ZOOMLION ZD320-3 bulldozer


	Item	Unit	ZD320-3	ZD320M-3
Key Technical Parameter	Blade type	-	Small Semi-U Blade	Small Semi-U Blade
	Working mass	kg	35044	35100
	Blade capacity	m³	11.6	11.6
	Engine model	-	NTA855-C360	NTA855-C360
	Rated power/Slewing speed	kW/rpm	257	257
	Max. torque	N.m/rpm	1509/1400	1412/1400
	Min. fuel consumption	g/kW.h	242	242
	Max. Drawbar pull	Kn	302	355
	Ground pressure	kPa	106	106
	Gradeability°	°	30	30
	Traveling speed of forward	km/h	3.6/6.6/11.5	3.7/6.8/11.8
	Traveling speed of Reverse	km/h	4.4/7.8/13.5	4.5/8.2/13.7
Basic Technical Parameter	Height of cab	mm	3600	3570
	Height of ROPS	mm	3687	3673
	Ground contact length	mm	3150	3150
	Height of blade	mm	1705	1553
	Track center distance	mm	2140	2140
	Height of grouser	mm	80	80
	Track shoe width	mm	560	560
Operating Range	Max. lift height of dozer	mm	1560	1560
	Max. drop depth	mm	560	560
	Max. lift height of ripper	mm	single-shank 960 multi-shank 890	890
	Max. ripping depth of ripper	mm	single-shank 1235 multi-shank835	835
	Max. tilt	mm	1000	1000
