Our Service:
* We are 7 years supplier, have good price of ZOOMLION ZD220 bulldozer for sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

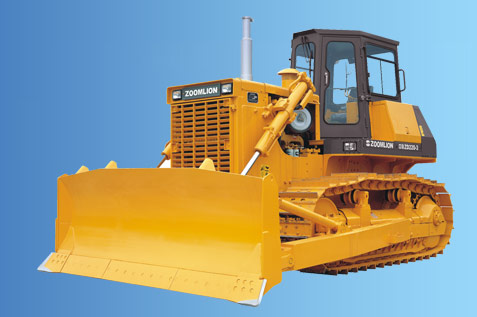

ZOOMLION ZD220 bulldozer

Item	Unit	ZD220-3	ZD220F-3	ZD220M-3
Key Technical Parameter	Blade type	-	Tilt Blade	Angle Blade	Tilt Blade
	Working mass	kg	23600	23870	24650
	Blade capacity	m³	6.4	4.8
	Engine model	-	NT855-C280（BC3）	NT855-C280（BC3）	NT855-C280（BC3）
	Rated power/Slewing speed	kW/rpm	175	175	175
	Max. torque	N.m/rpm	1078/1250	1078/1251	1078/1250
	Min. fuel consumption	g/kW.h	208	208	208
	Max. Drawbar pull	Kn	207	207	202
	Ground pressure	kPa	76	76
	Gradeability°	°	30	30	30
	Traveling speed of forward	km/h	3.6/6.5/11.2	3.6/6.5/11.2	3.6/6.5/11.2
	Traveling speed of Reverse	km/h	4.3/7.7/13.2	4.3/7.7/13.2	4.3/7.7/13.2
Basic Technical Parameter	Height of cab	mm	3354	——	3397
	Height of ROPS	mm	3385	3523	——
	Ground contact length	mm	2730	2730	3050
	Height of blade	mm	1315	1055	1248
	Track center distance	mm	2000	2000	2000
	Height of grouser	mm	72	72	72
	Track shoe width	mm	560	560	610
Operating Range	Max. lift height of dozer	mm	1210	1292	1545
	Max. drop depth	mm	538	536	490
	Max. lift height of ripper	mm	single-shank 538 multi-shank 555	555	555
	Max. ripping depth of ripper	mm	666	666	666
	Max. tilt	mm	735	——	735
