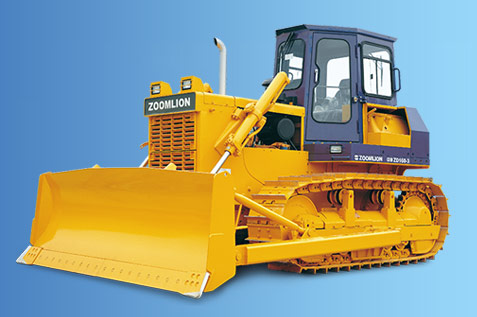

ZOOMLION ZD160-3 bulldozer
Our Service:
* We are 7 years supplier, have good price of ZOOMLION ZD160-3 bulldozerfor sale.
* We supply one year guarantee for all machines.
* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

For more details, specification and catalogues about Shantui Bulldozer,
please contact us, Mob. 008615862203425, Mail: machinery@cnfocusgroup.com

ZOOMLION ZD160-3 bulldozer

	Item	Unit	ZOOMLION ZD160-3 bulldozer
Key Technical Parameter	Blade type	-	Tilt Blade
	Working mass	kg	16500
	Blade capacity	m³	4.6
	Engine model	-	WD10G178E25
	Rated power/Slewing speed	kW/rpm	131
	Max. torque	N.m/rpm	830/1100
	Min. fuel consumption	g/kW.h	215
	Max. Drawbar pull	Kn	152
	Ground pressure	kPa	65
	Gradeability°	°	30
	Traveling speed of forward	km/h	3.8/6.6/10.6
	Traveling speed of Reverse	km/h	4.9/8.5/13.6
Basic Technical Parameter	Height of cab	mm	3095
	Height of ROPS	mm	3200
	Ground contact length	mm	2430
	Height of blade	mm	1150
	Track center distance	mm	1880
	Height of grouser	mm	65
	Track shoe width	mm	510
Operating Range	Max. lift height of dozer	mm	1095
	Max. drop depth	mm	545
	Max. lift height of ripper	mm	702
	Max. ripping depth of ripper	mm	572
	Max. tilt	mm	864
