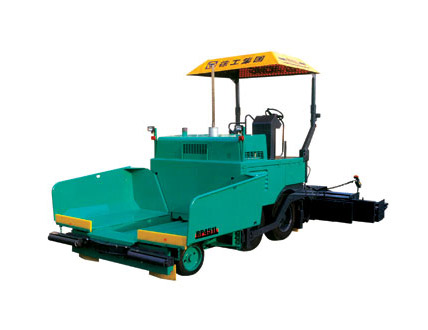

XCMG RP602L is another small paver.

Item	Unit	Specification
Working specification
Theoretical Productivity	t/h	300
Max. paving width	m	6
Max. paving thickness	mm	150
Paving speed	m/min	16
Smoothness	mm	3
Dense Degree	%	≥85
Dense irregularity	%	<5
Travelling specification
Max. travelling speed	km/h	16
Driving type		Tire
Grade ability	%	20
Min. turning diameter (wheel)	m	20
Driving brake		Hydrostatic
parking brake		Multiple disk brake+ Hydraulic release
Crawler tension (caterpillar)		/
Braking distance (wheel)	m	5.9
Tire size (wheel)		1080
Material transporting specification
Structural style		Transporting linkage
Drive method		Independent hydraulic drive
Scraper conveyor speed	m/min	0~22
Spiral feeding speed	r/min	0~52
Screw diameter	mm	360/360
Lubrication method		Automaticlubrication
Screed specification
Assembled form		Hydraulic extension
Basic width	m	2.5
Compact device		Single vibration
Screed heating		Gas heating
Tamper trip	mm	4
Tamper revolution	r/min	1500
Vibrational frequency	Hz	/
Arciform range	%	0~+3
Weight specification
Gross weight(including screed)	kg	12800
Max. gross weight(working condition)	kg	15900
Structure specification
Dimensions(L×W×H)	mm	6350×2580×3892
Grounding area (caterpillar)	mm	/
Hopper capacity	t	13
Hopper width	mm	3250
Hopper length	mm	1936
Engine
Model		Yuchai YC4D125Z
Rated power/speed	kW/r/min	92/2200
Emission		non-road,National Ⅱ
Fuel tank capacity	L	150
