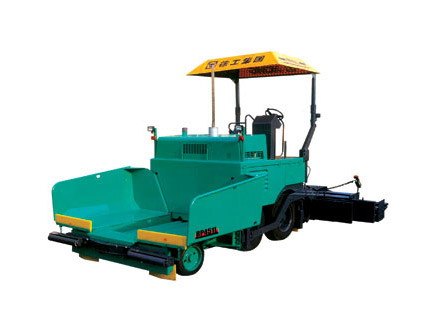

Paver

Max. paving width: 6m Max. paving thickness: 150mm Engine model: Yuchai YC4D95Z-T21...

Call us+86 791 86219010

Advantage:

Theoretical Productivity	t/h	300
Max. paving width	m	6
Max. paving thickness	mm	150
Paving speed	m/min	11
Smoothness	mm	3
Dense Degree	%	≥85
Dense irregularity	%	<5
Travelling specification
Max. travelling speed	km/h	13
Driving type		Wheel
Grade ability	%	20
Min. turning diameter (wheel)	m	16
Driving brake		Hydrostatic + multiple disk brake
parking brake		Wet multiple disk brake
Crawler tension (caterpillar)		/
Braking distance (wheel)	m	5
Tire size (wheel)		974
Material transporting specification
Structural style		Transporting linkage
Drive method		Independent hydraulic drive
Scraper conveyor speed	m/min	0~30
Spiral feeding speed	r/min	0~73
Screw diameter	mm	360/300
Lubrication method		Manual lubrication
Screed specification
Assembled form		Hydraulic extension
Basic width	m	2
Compact device		Eccentric vibration
Screed heating		Gas heating
Tamper trip	mm	/
Tamper revolution	r/min	/
Vibrational frequency	Hz	6~42
Arciform range	%	0~+3
Weight specification
Gross weight(including screed)	kg	10900
Max. gross weight(working condition)	kg	11500
Structure specification
Dimensions(L×W×H)	mm	5690×2070×3590
Grounding area (caterpillar)	mm	/
Hopper capacity	t	12
Hopper width	mm	3000
Hopper length	mm	1740
Engine
Model		Yuchai YC4D95Z-T21
Rated power/speed	kW/r/min	70/2200
Emission		non-road,National Ⅱ
Fuel tank capacity	L	130
