Main parameters
* Gross Weight:88t
* Curb Weight :28t
* Payload:60t
* Max. Speed (km/h):57
* Engine Model:WDWD12.420
* Dimension (L*W*H):8670×3390×3885mm

Main configuration
* WEICHAI ENGINE: WD12G420E211
* Transmission: 7DS200K
* Axles:19t+35t+35t

 Production  characteristics
* reinforced frame with gread flexibility:”c”channel section side members with full length inner reinforcement,all made of specially thickened high-strength steel to manage great stress under haul  road shocks.

*  transmission specially designed for minning application.

*  double reaction rods,extra double-action shock absorbers and more leaf spring piates applied to make the fornt suspension tougher.

* patented fram  structure construction,tosupport with high hardness abrasion resistant steel rugged and durable.

*  cab:frame-structure derived form excavator design,roll over protection,and goodcomfort achieved by all around optimization.

* suggested  applications:complicated haul application(involving both grading section and sub-grade sections).

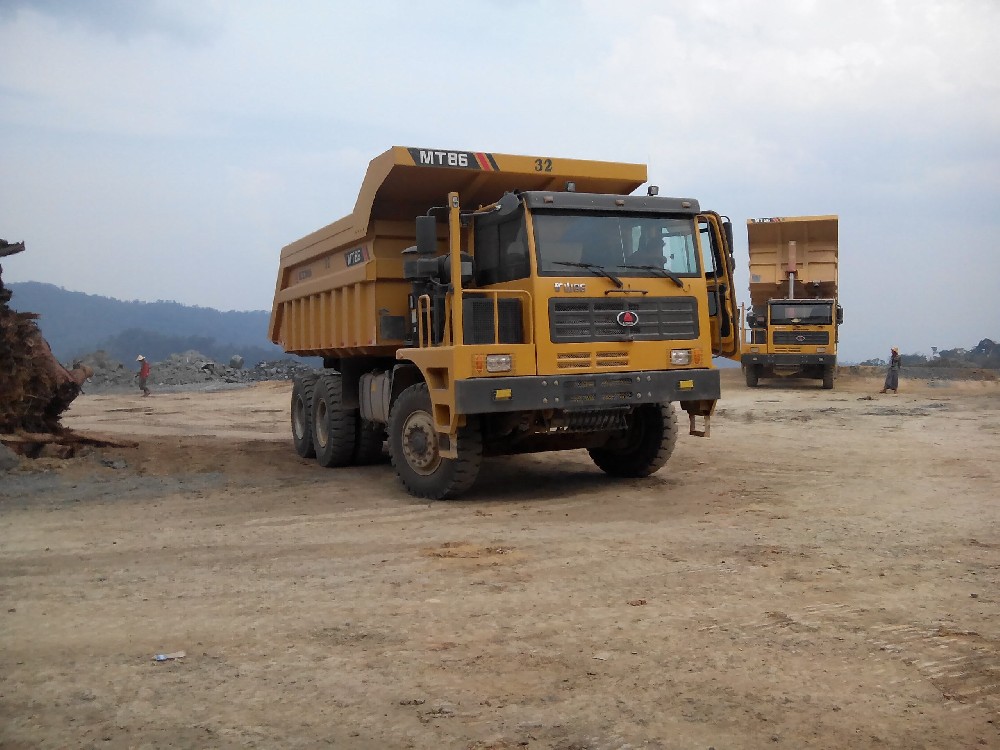

 SDLG80t Mining Dump Truck MT86Standard Configuration Specification
