Main parameters
* Gross Weight:76t
* Curb Weight :26t
* Payload:50t
* Max. Speed (km/h):55
* Engine Model:WD12.375
* Dimension (L*W*H):8670×3390×3885mm

Main configuration
* WEICHAI ENGINE: WD12G37E211
* Transmission: 7DS200K
* Axles: 16t+30t+30t

Production  characteristics
 *reinforced frame with gread flexibility:”c”channel section side members with full length inner reinforcement,all made of specially thickened high-strength steel to manage great stress under haul  road shocks.

 *most rugged and durable balance beams in cast steel structure.

 * Hydraulic system:the steering and hoisting operations are designed to be driven by the flows
within the same circulation.As a result,hydraulic
oil temperature is lowered as much as 50% and failure rate  of  the hydraulic system drops sharply.

*patented fram  structure construction,tosupport with high hardness abrasion resistant steel rugged and durable.

*suggested  applications:quarrying and medium scale mining.


Our Service:

* We are 7 years supplier, have good price of SDLG 70t Mining Dump Truck MT76 for sale.

* We supply one year guarantee for all machines.

* We also supply Shantui Bulldozer Spare Parts with good price and quick response.

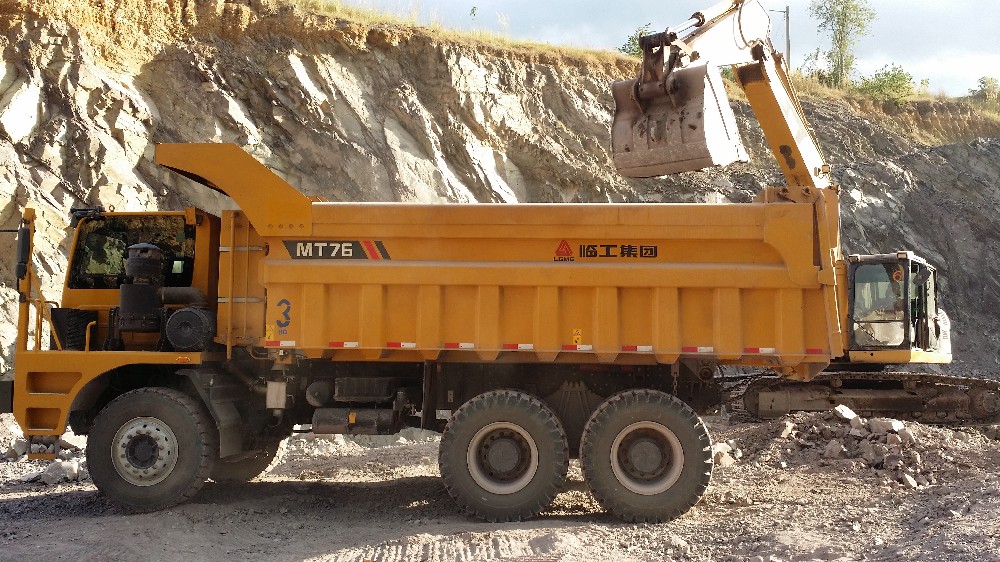

SDLG 70t Mining Dump Truck MT76 Standard Configuration Specification
