Detailed configuration
Engine Model: YC4D80-T11
Rated power: 56kw


Advantages:

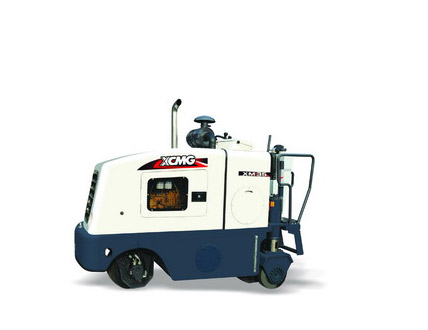

XM 35 milling machine is one of the asphalt concrete road maintenance equipment.
It is an ideal equipment for pavement maintenance and renovation.







Model			XM35
Max. milling with		mm	350
Max. milling depth		mm	60
Milling wheel	Number of tools		38
	Drum diameter with tools	mm	460
Engine	Model		YC4D80-T11
	Rated power	kW	56
	Rated speed	rpm	2200
Specifications	Operating speed	m/min	0～25
	Travel speed	kmh	0～6
	Ground clearance	%	20
	Ground clearance	mm	≤80
	Operating weight	kg	4350
Volume	Fuel tank	L	90
	Hydraulic oil tank	L	70
	Water tank	L	220
Conveyor	Width	mm
Measurement	Overall machinery LxWxH	mm	2820×1225×2050
	Conveyor LxWxH	mm
Travel mode			Tire
